Over the past few years of building pedals and guitars I’ve designed a few tools to make my life easier. This mainly includes drill jigs, but also other tools and some DIY PCBs when I have extra.

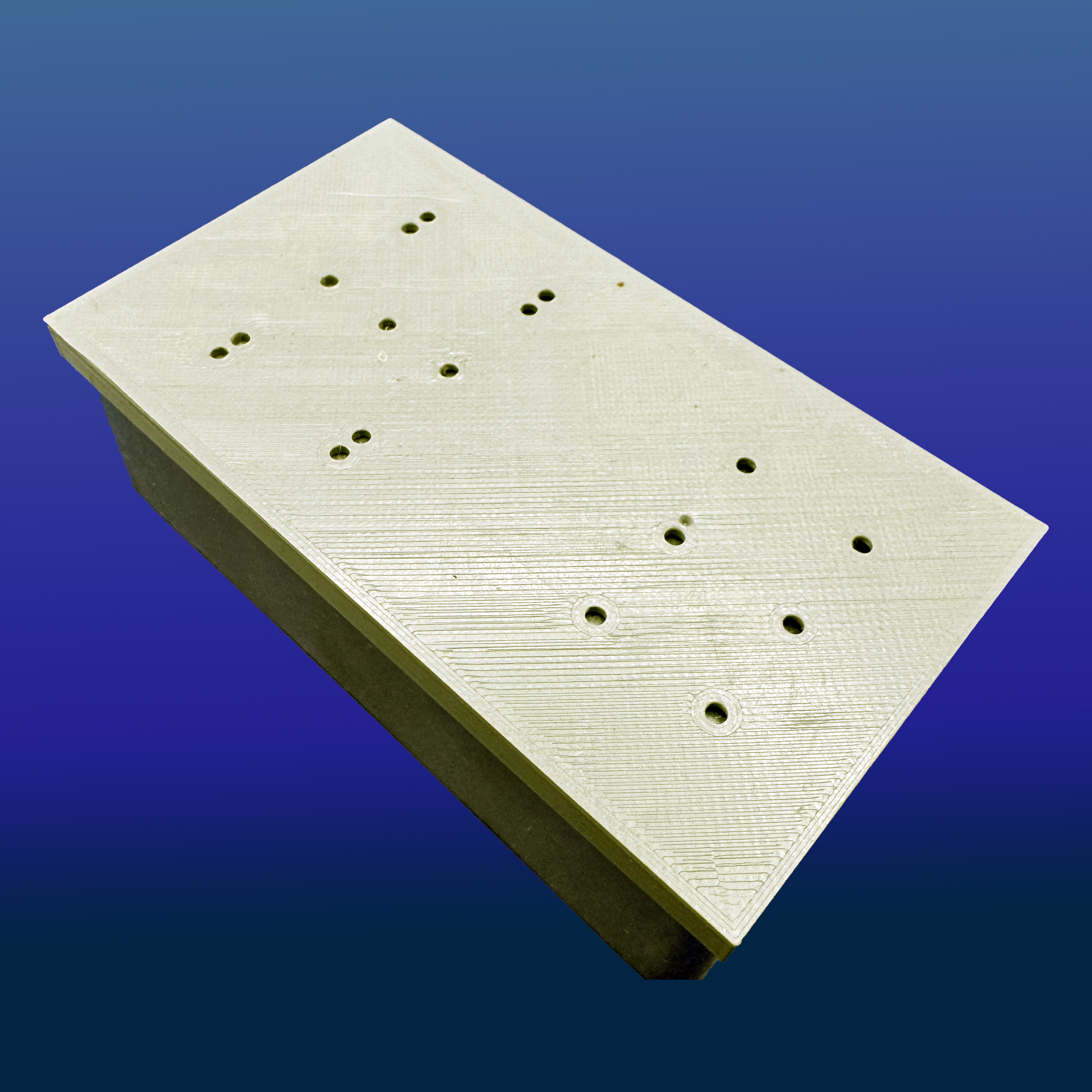

125B Drill Templates

125B Drill Templates

Drill templates for standard 125B enclosures with top mounted jacks. Works with most common pedalpcb and madbean designs.

Buy on Reverb

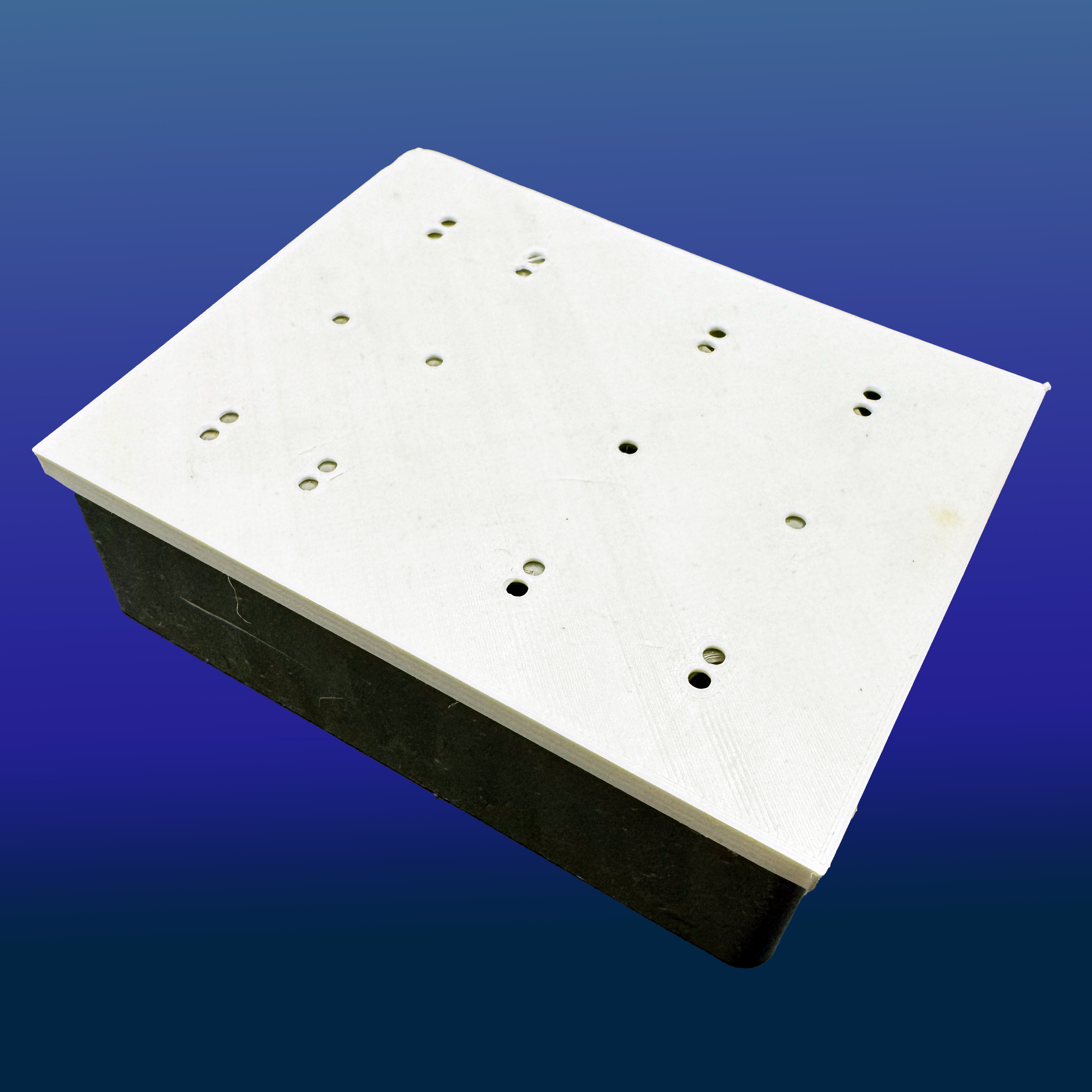

1590BB Drill Templates

1590BB Drill Templates

Drill templates for 1590BB enclosures. Includes vertical and horizontal templates.

Buy on Reverb

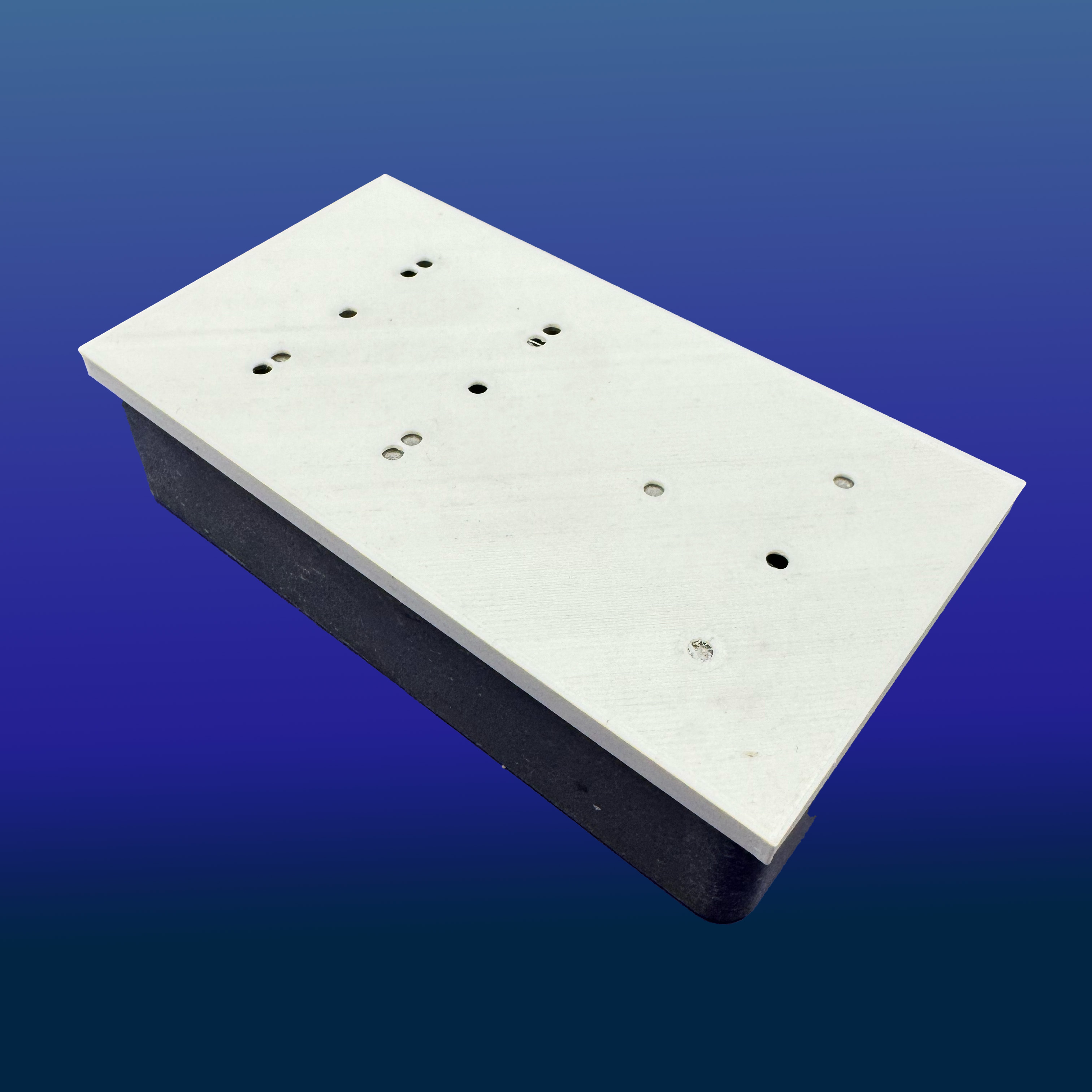

1590B Drill Templates

1590B Drill Templates

Drill templates for smaller 1590B enclosures. Also known as Taiwanese B enclosures.

Buy on Reverb
